TV Mounting Height Calculator

A TV mounting height calculator should make one decision simpler: where the screen itself belongs. It should not pretend that every living room uses the same sofa, console, soundbar, or viewing position. The useful result is a starting layout you can see in the room, not a number to copy blindly.

Start with the person and seat that matter most. Sony’s wall-mount guidance recommends putting the screen’s horizontal and vertical center lines at the viewers’ eye level, while recognizing that seating and preference affect the final decision. The calculator below turns that practical starting point into bottom-edge and top-edge measurements.

Start with the seated eye line.

Measure from the floor to your eyes while sitting normally in the main viewing seat. Do not take the measurement while standing, leaning forward, or sitting up straighter than you would during a movie. A standard sofa often lands near 42 inches, but the room deserves a real measurement. Recliners, deep sectionals, and bedroom viewing all change the number.

This is why a large TV does not automatically belong higher on the wall. The ideal center can remain near the same eye line while the panel grows above and below it. The actual screen shape, furniture beneath it, and the room’s sightlines decide whether that position works in practice.

How the calculator works.

Most televisions use a 16:9 display. From the diagonal measurement, the calculator estimates the screen height, then splits that height above and below your selected screen center. With a 65-inch 16:9 television, for example, the display is roughly 31.9 inches tall. A 42-inch seated eye line puts the estimated bottom edge at about 26 inches from the floor and the top edge near 58 inches.

Those are screen measurements, not drill-hole measurements. The metal wall plate can sit above or below the final screen center, and the TV’s mounting holes are not always vertically centered. That is why manufacturer-specific tools such as the SANUS HeightFinder ask for the exact TV and mount model when you are ready to locate the wall plate.

Add clearance only when the room requires it.

The bottom-edge clearance field is for a real constraint: the top of a console, a mantel, a radiator cover, or a soundbar that needs room. Enter the lowest point where the screen can safely and comfortably begin. If that clearance pushes the result above your eye line, the calculator will say so plainly. That is useful information, because it shows the tradeoff before installation day.

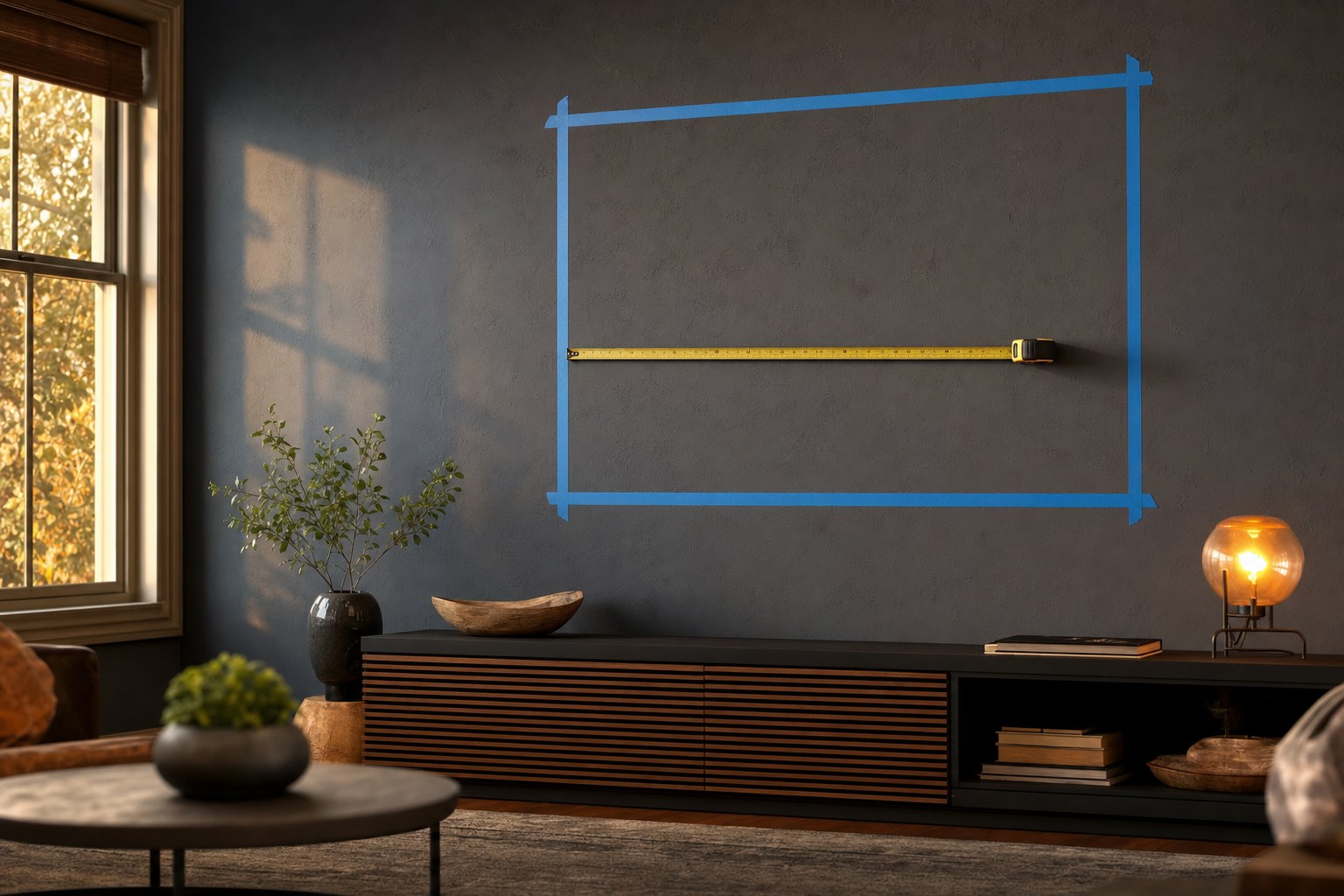

Do not add extra clearance just because a screen looks low while you are standing. Seated comfort is the better test for a living room. Make a painter’s-tape outline using the result, then look at it from the sofa. This simple step reveals whether the screen feels natural, crowded, or too high long before the mount is fixed to the wall.

Plan the soundbar and cable route now.

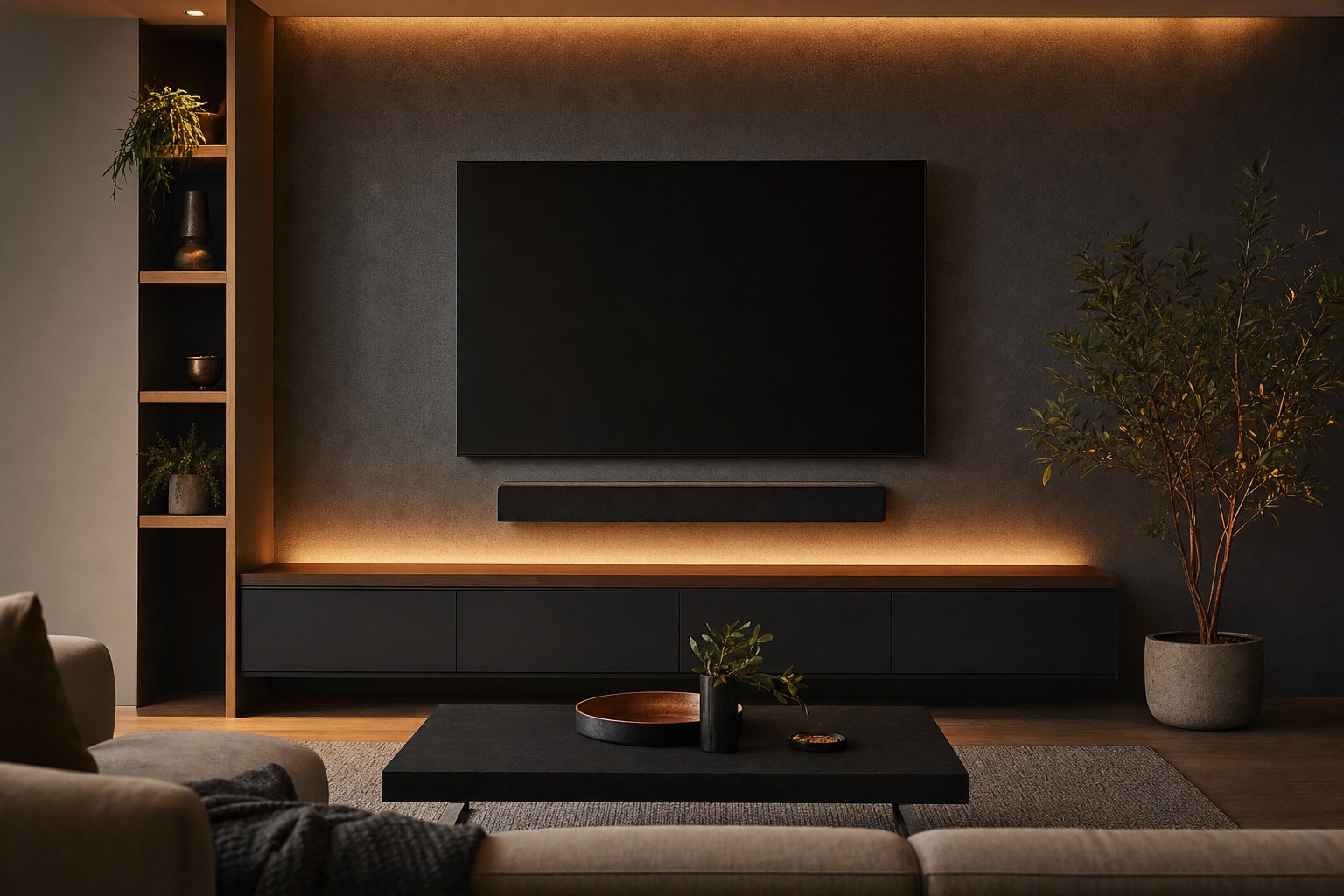

A soundbar changes the composition below the screen. It needs enough breathing room, should not block the picture, and should line up with the television instead of looking added on later. If it will sit below the TV, include its required space in the bottom-edge clearance, then check the final outline from your primary seat.

Power, streaming devices, and soundbar connections deserve the same early decision. ReadyMountTv’s in-wall cable concealment service is easiest to plan while the mount location is still flexible. A clean finish comes from deciding the screen, soundbar, power, and cable path together, not from hiding a last-minute bundle after the TV is already mounted.

When a fireplace changes the answer.

A fireplace wall may be the natural focal point, but it can force a television higher than the seated eye line. Enter the mantel or required heat-clearance position as the bottom edge, then use the result as a comfort check. If the center rises noticeably, sit down and test the whole outline. A tilting or pull-down mount can improve the viewing angle in the right room, but it does not change the TV or fireplace manufacturer’s heat and clearance guidance.

For an over-mantel installation, make viewing comfort, wall structure, heat, mount movement, and cable routing one conversation. The fireplace TV mounting guide explains the questions that matter before this kind of higher-stakes placement is installed.

Turn the number into a confident plan.

1. Measure your normal seated eye height from the floor.
2. Enter the TV’s diagonal size, then add only the clearance your room truly needs.
3. Tape the calculated bottom edge, top edge, and full TV outline on the wall.
4. Check it while seated, in daytime and evening light.
5. Confirm the actual TV height, VESA-hole location, and mount offset from the product instructions.
6. Plan the soundbar, power, and cable route before mounting begins.

The calculator gets you to a far better first mark than an arbitrary “standard” height. The final check is always the room in front of you. If you want the TV, soundbar, and wiring to land as one clean system, see the TV wall mounting service and choose the level of finish that fits the project.
